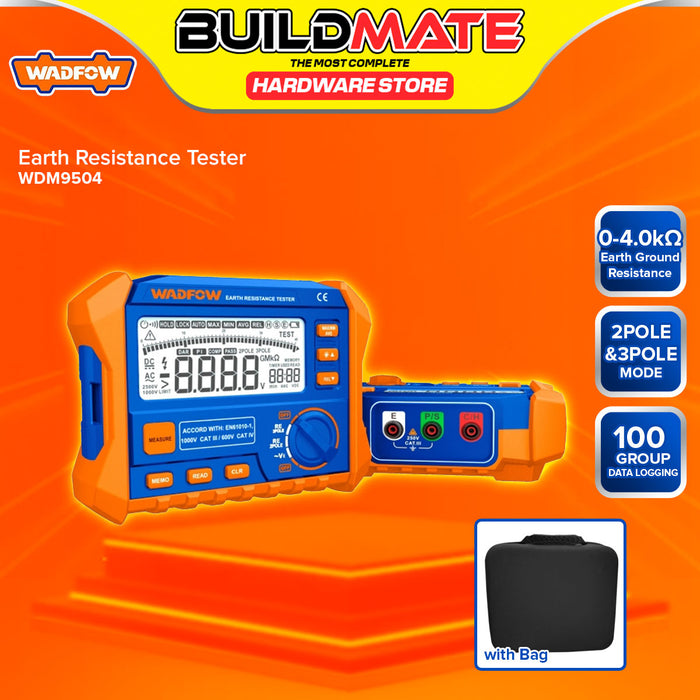

BUILDMATE Wadfow Earth Resistance Tester 2&3 Pole Mode Digital Ground Testing Soil Resistivity Instrument Measuring Device WDM9504 - WPT

BUILDMATE Wadfow Earth Resistance Tester 2&3 Pole Mode Digital Ground Testing Soil Resistivity Instrument Measuring Device WDM9504 - WPT

SPECIFICATION:
►Model: WDM9504
►Earth Resistance Measurement:
►Range:
-0 ~ 29.99Ω; Accuracy: ±(2%rdg + 6d); Resolution: 0.01Ω
-30.0 ~ 99.9Ω; Accuracy: ±(3%rdg + 3d); Resolution: 0.1Ω
-100 ~ 999Ω; Accuracy: ±(3%rdg + 3d); Resolution: 1Ω
-1.00k ~ 4.00kΩ; Accuracy: ±(3%rdg + 3d); Resolution: 10Ω
►Earth Voltage Measurement:
-Range: 0V ~ 200V (50/60Hz)
-Accuracy: ±(1%edg + 5d)
-Resolution: 0.1V
►Display: Digital & Analog Bars
►Measurement Modes:
-2-Pole Mode: Standard measurement mode for earth resistance testing.
-3-Pole Mode: Enhanced measurement mode for more accurate readings, typically used for detailed assessments.
►Data Logging:
-Capacity: 100 groups of data
-Functions: MAX (Maximum), MIN (Minimum), AVG (Average), REL (Relative) measurements for comprehensive analysis.
►Backlight
►With 8pcs 1.5V AA Batteries

FEATURES:
►Accuracy and Resolution: High precision with varying accuracy and resolution ranges tailored to different measurement needs.
►Dual Display: Provides both digital and analog readings for easy interpretation of results.
►Backlight Display: Enhances readability in various lighting conditions.
►Data Logging: Allows for storing up to 100 measurement groups for later review and analysis.
►Measurement Modes: 2-Pole and 3-Pole modes offer flexibility for different testing scenarios.
►MAX/MIN/AVG/REL Functions: Useful for capturing and analyzing the range of measurements and deviations.
►Applications: Ideal for measuring earth resistance and earth voltage in various electrical systems to ensure safety and compliance with standards.
►Versatility: Suitable for use in different environments, including industrial, commercial, and residential settings.
