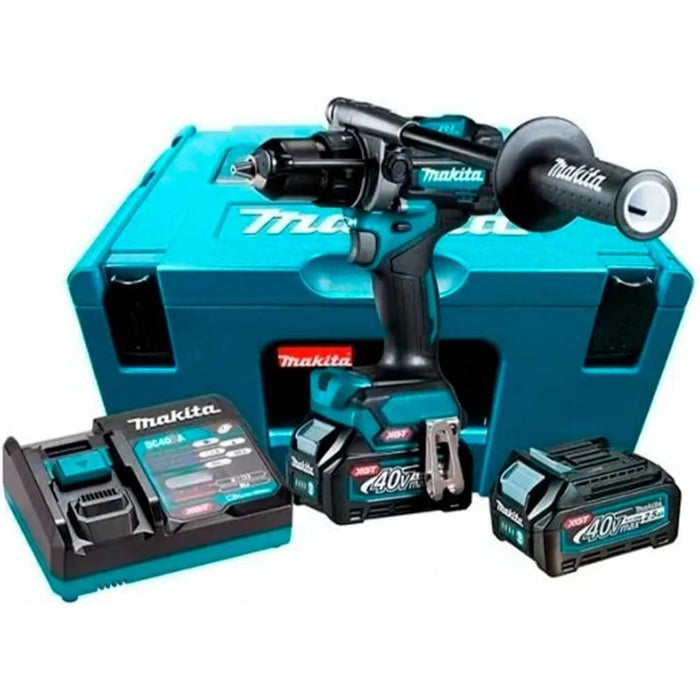

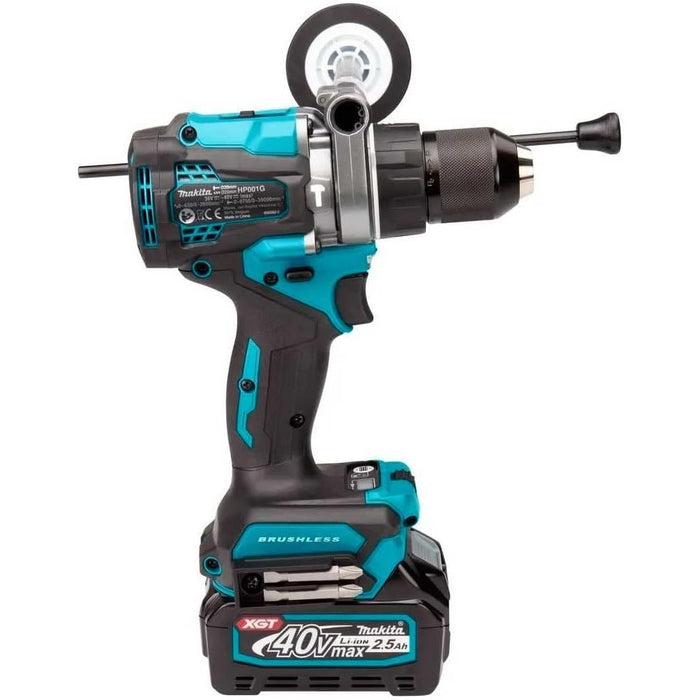

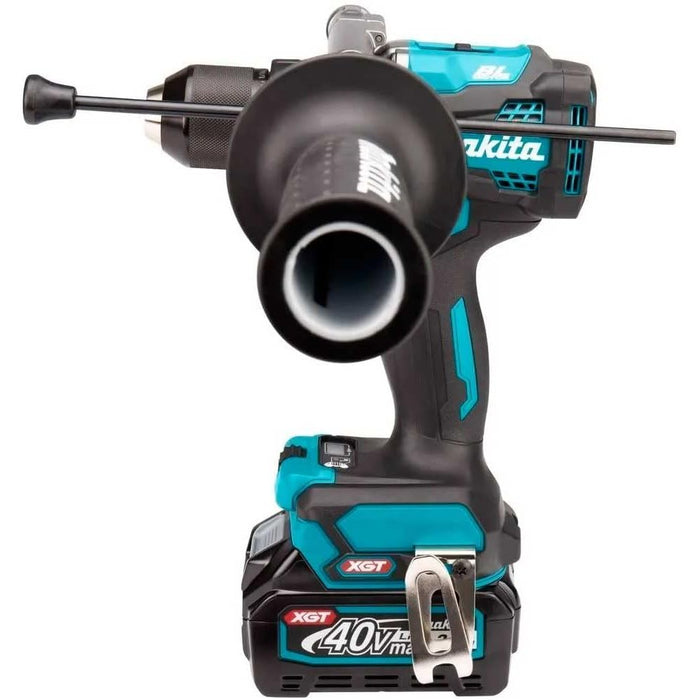

BUILDMATE Makita 40V XGT Reversible Cordless Hammer Driver Drill Concrete Chipping Gun HP001GD201
BUILDMATE Makita 40V XGT Reversible Cordless Hammer Driver Drill Concrete Chipping Gun Kit Set HP001GD201
SPECIFICATIONS:
►Model: HP001GD201
►Voltage: 40V
►Capacity:
- Steel: 20mm (13/16″ Inch)
- Wood (Auger-Bit): 50mm (2″ Inch)
- Wood (Self-Feed Bit): 76mm (3″ Inch)
- Wood (Hole Saw): 152mm (6″ Inch)
- Siding Board: 220mm (8-5/8″ Inch)
- Masonry: 20mm (13/16″ Inch)
►Chuck Capacity: 1.5 – 13mm (1/16″ Inch – 1/2″ Inch)
►Impacts Per Minute (IPM):
- High: 0 – 39,000IPM
- Low: 0 – 9,750IPM
►No Load Speed (RPM):
- High: 0 – 2,600rpm
- Low: 0 – 650rpm
►Max Fastening Torque;
- Hard: 140N·m (1,240 in. lbs.)
- Soft: 68N·m (600 in. lbs.)
►Max Lock Torque: 125N·m (1,100 in. lbs.)
►Max Peak Torque: 141N・m
►Clutch Torque Setting:
- High: 1 – 10N·m (9 – 90 in. lbs.)
/ Low: 1 – 45N·m (9 – 400 in.lbs.)
►Max Output: 1,000W
►Vibration Level (Impact Drilling into Concrete): 6.0m/s²
►Vibration K Factor (Impact Drilling into Concrete): 1.5m/s²
►Vibration Level (Drilling into Metal): 2.5m/s² or less
►Vibration K Factor (Drilling into Metal): 1.5m/s²
►Sound Pressure Level: 85dB(A)
►Sound Power Level: 96dB(A)
►Noise K Factor: 3dB(A)
►Dimensions (L x W x H):
- With BL4025: 182mm x 86mm x 275mm (7-1/8″ Inch x 3-3/8″ Inch x 10-7/8″ Inch)
- With BL4040: 182mm x 86mm x 282mm (7-1/8″ Inch x 3-3/8″ Inch x 11-1/8″ Inch)
►Net Weight: 2.7 – 3.0 kg (6.0 – 6.6 lbs.)
FEATURES:
►Excellent performance in continuous heavy duty applications
►Outstanding drilling speed; Delivers 20% or more higher speed than previous model.
►Increased max speed (0-2,600 RPM) in High mode for faster drilling speed in light duty applications
►Variable 2-speed transmission (0-650 & 0-2,600 RPM) for a wide range of drilling, fastening and hammer drilling applications
►Compact overall length for easy handling and control
►Active Feedback sensing Technology (AFT) turns the motor off if bit rotation is suddenly forced to stop
►Electronical clutch (41/21 settings in Low/High mode) allows for clutch setting in the torque range which cannot be covered with mechanical clutch
►Jog dial for easy adjustment of fastening torque; with digital display for visual confirmation of selected torque
►Electric brake for maximum productivity and increased operator safety
►LED job light with afterglow feature illuminates the work area
►All metal 13 mm self-ratcheting chuck for improved bit gripping strength and durability
►Keyless chuck for quick and easy bit installation and removal
►Depth gauge for increased drilling consistency
►XPT (eXtreme Protection Technology) is engineered for improved dust and water resistance for operation in harsh conditions
►Reversing switch is conveniently located
►Durable, reversible belt clip convenient for temporary tool hanging
►Battery protection circuit protects against overloading, over-discharging and over-heating
