BUILDMATE Ingco Digital AC Clamp Meter 6000 Counts Voltage Voltmeter Tester Electrical Test Tool - IPT

BUILDMATE Ingco Digital AC Clamp Meter 6000 Counts Voltage Voltmeter Tester Electrical Test Tool - IPT

AVAILABLE IN:
►6000C - DCM10004
►6000C - DCM100014
►6000C - DCM100015

SPECIFICATIONS:
►Model: DCM10004
►Display: 6000 Counts
►Form Factor: Handheld
►Input Protection Features: HRC Fuse
►Protection Against Solids: Not Protected
►AC Current: 60A/600A/1000A
►DC Current: 60A/600A
►AC Voltage: 600mV/6V/60V/600V/750V
►DC Voltage: 600mV/6V/60V/600V/1000V
►Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
►Capacitance: 10nf/100nf/1000nf/10μF/100μF/1000μF/10mf/100mf
►Frequency: 10Hz/100Hz/1000Hz/10KHz/100KHz/1000KHz/10MHz
►Duty Cycle: 1%~99%
►Temperature: -20~1000℃(-8~1832°F)

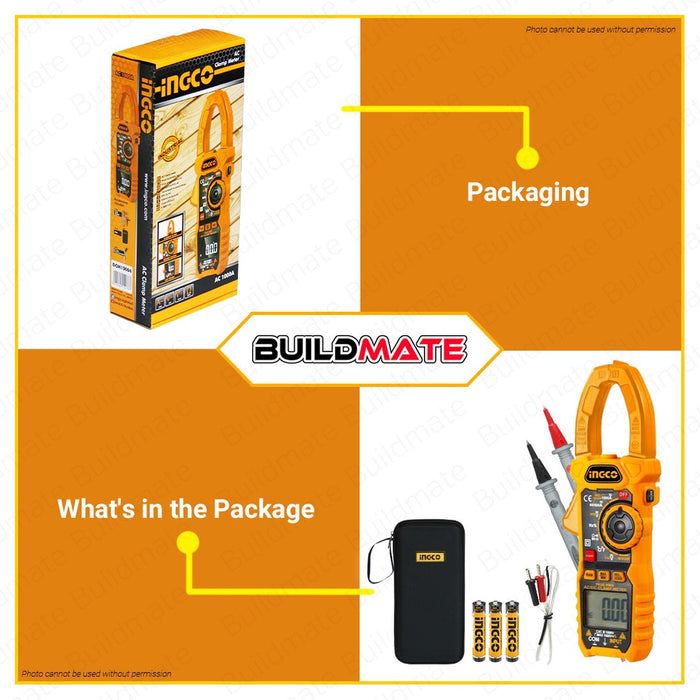

INCLUDE:
►3pcs 1.5V AAA Batteries
►1pc 1000Amp AC Digital Clamp Meter
►1pc Test Leads (set)
►1pc Bag
►1pc K Type Thermocouple


SPECIFICATION:
►Model: DCM100014
►Display: 6000 Counts
►AC Current: 60A/600A/1000A
►AC Voltage: 600mV/6V/60V/600V/750V
►DC Voltage: 600mV/6V/60V/600V/1000V
►Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
►Capacitance: 10nf/100nf/1000nf/10μF/100μF/1000μF/10mf/100mf
►Frequency: 10Hz/100Hz/1000Hz/10KHz/100KHz/1000KHz/10MHz
►Duty cycle: 1%~99%
►Temperature: -20~1000℃(-8~1832°F)

INCLUDE:
►3pcs LR03 AAA Batteries


SPECIFICATION:

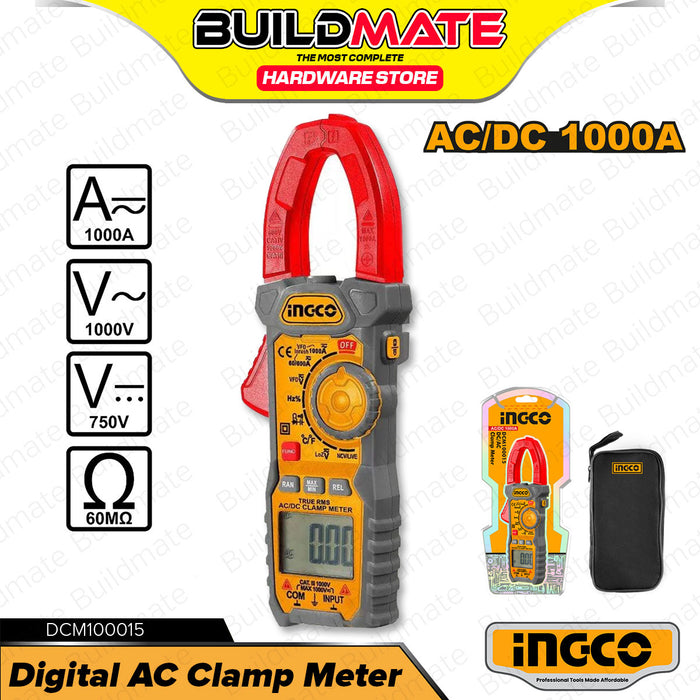

►Model: DCM100015
►Display: 6000 Counts
►AC Current: 60A/600A/1000A±(2.5% +8)
►DC Current: 60A/600A/1000A±(2.5% +8)
►AC Voltage: 60mV/600mV/6V/60V/600V±(0.8% +3) 750V±(1% +4)
►DC Voltage: 60mV/600mV/6V/60V/600V±(0.7% +3) 1000V±(0.8% +2)
►Resistance: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ±(0.8% +3) 60MΩ±(1.2% +3)
►Capacitance: 10nF/100nF/1000nF/10uF/100uF/1000uF/10mF/100mF±(4.0% +5)
►Temperature: -20~1000℃(-8~1832°F)

INCLUDE:
►3pcs LR03 AAA Batteries


FEATURES:
►Non-contact Voltage Detection
►Diode Test
►Data Hold
►LCD with Back Light
►Low Battery Indication
►Auto Power Off
►With Flash Light Function
